What we had
What we did
Architectural · Paper to CAD
Exterior elevations, 1938 building
Four exterior elevations of a 1938 building, redrafted from a scanned legacy sheet into a clean, layered CAD drawing.
About paper to cadWork
What we had. What we did.
Real drawings from past projects. Drag each slider to compare the source we received with the CAD we delivered. Client names are withheld — we sign NDAs and keep them.
What we had
What we did
Architectural · Paper to CAD

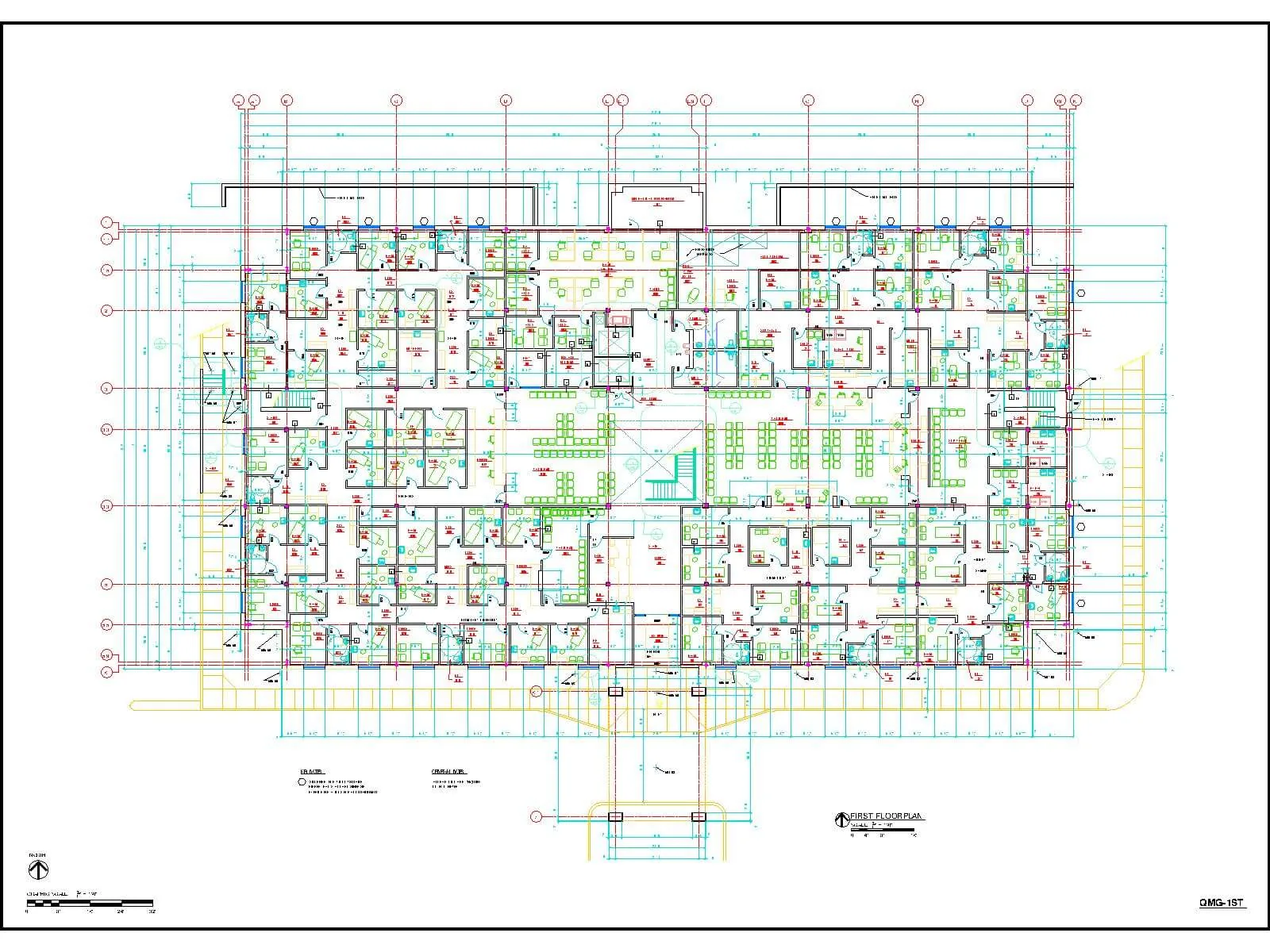

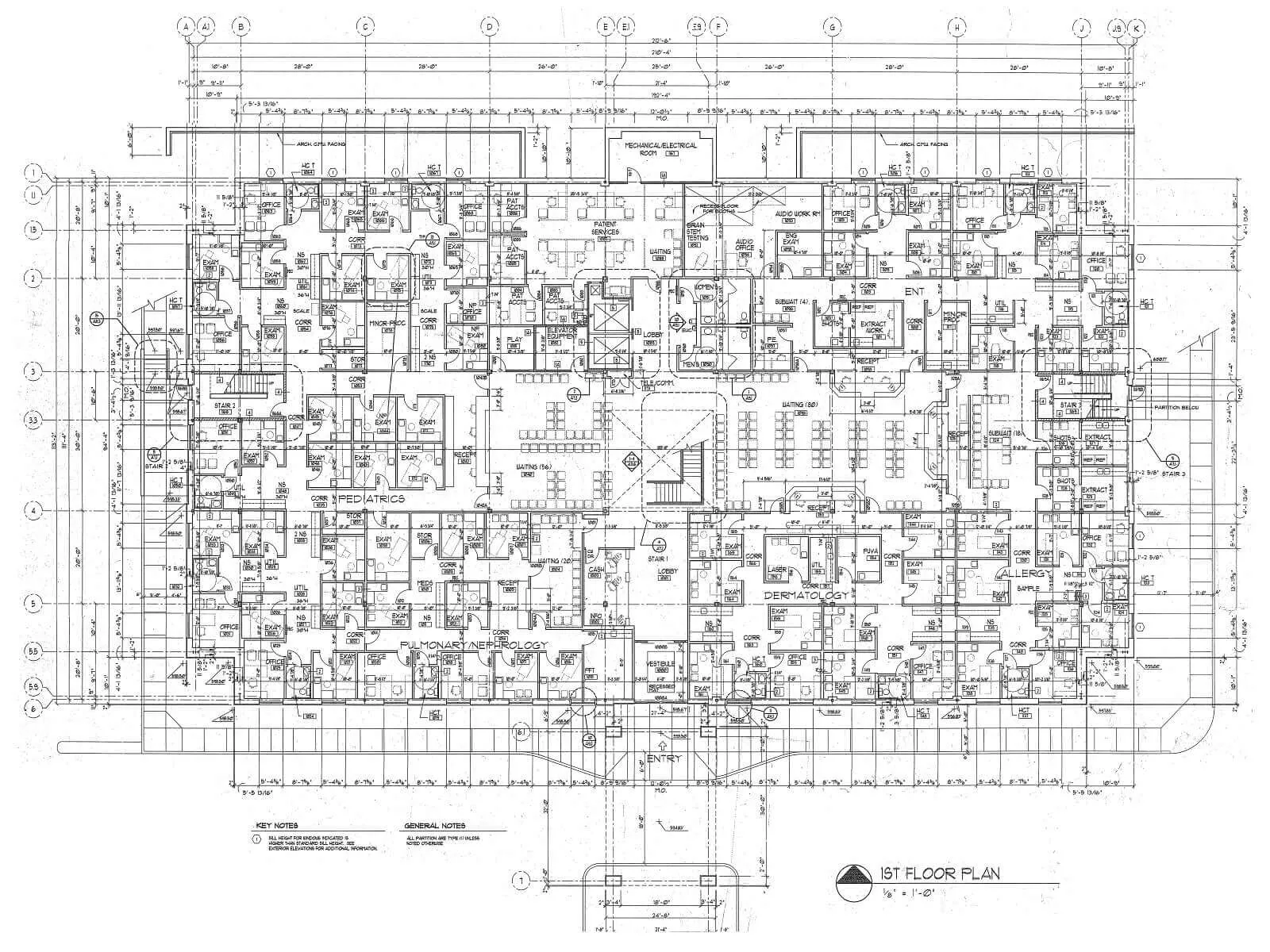

First-floor architectural plan
A dense first-floor plan — structural grid, walls, doors and room tags — redrafted from a scan onto separate layers.
About paper to cad
What we had
What we did
MEP · Paper to CAD
Mechanical equipment rooms
Equipment room plans and sections with ductwork and piping, redrafted from a scanned mechanical sheet.
About paper to cad
What we had
What we did
MEP · Paper to CAD
HVAC floor plan with details
A full-floor HVAC plan with its detail callouts, rebuilt as layered CAD with the grid, duct runs and annotation on separate layers.
About paper to cad
What we had
What we did
MEP · Paper to CAD

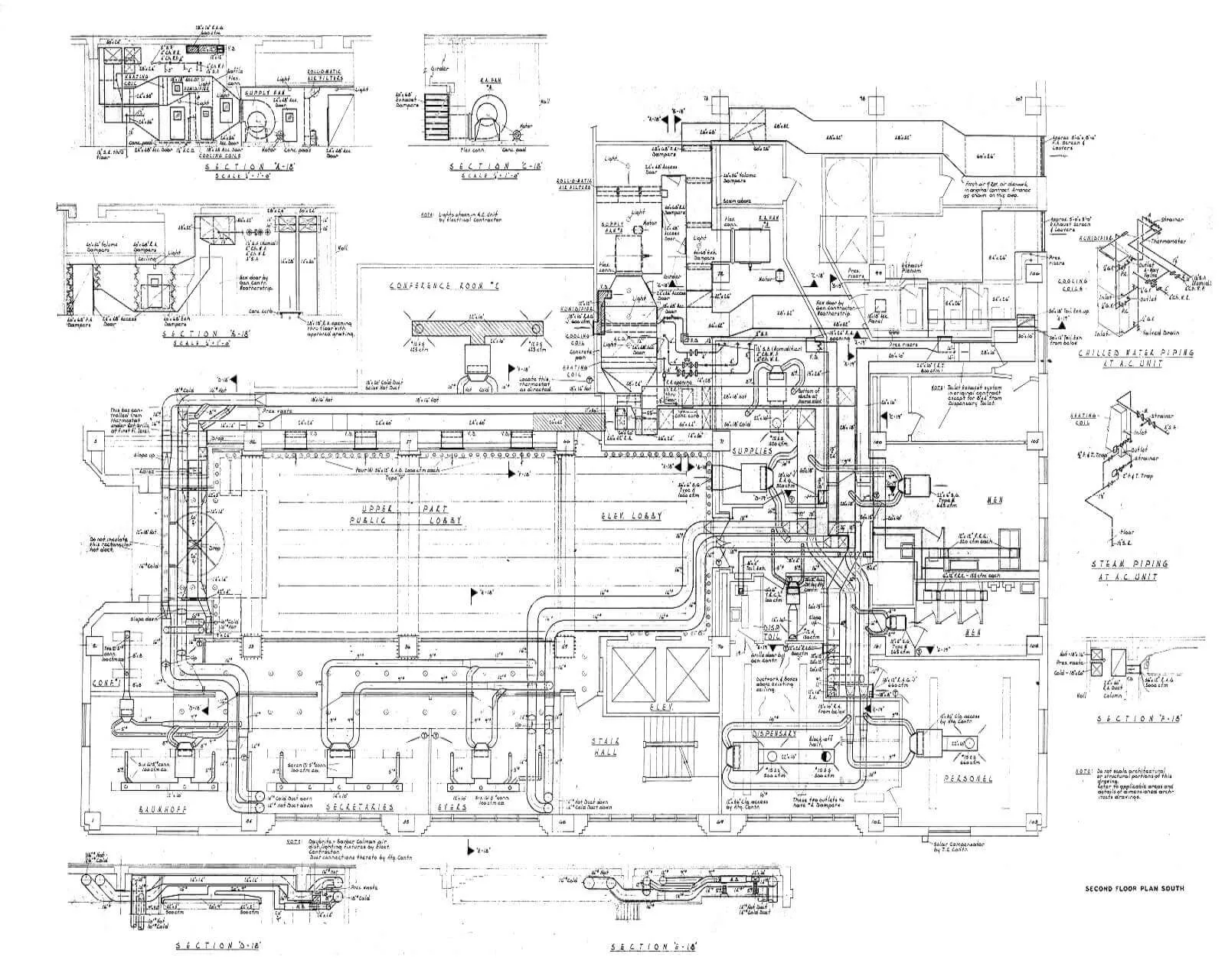

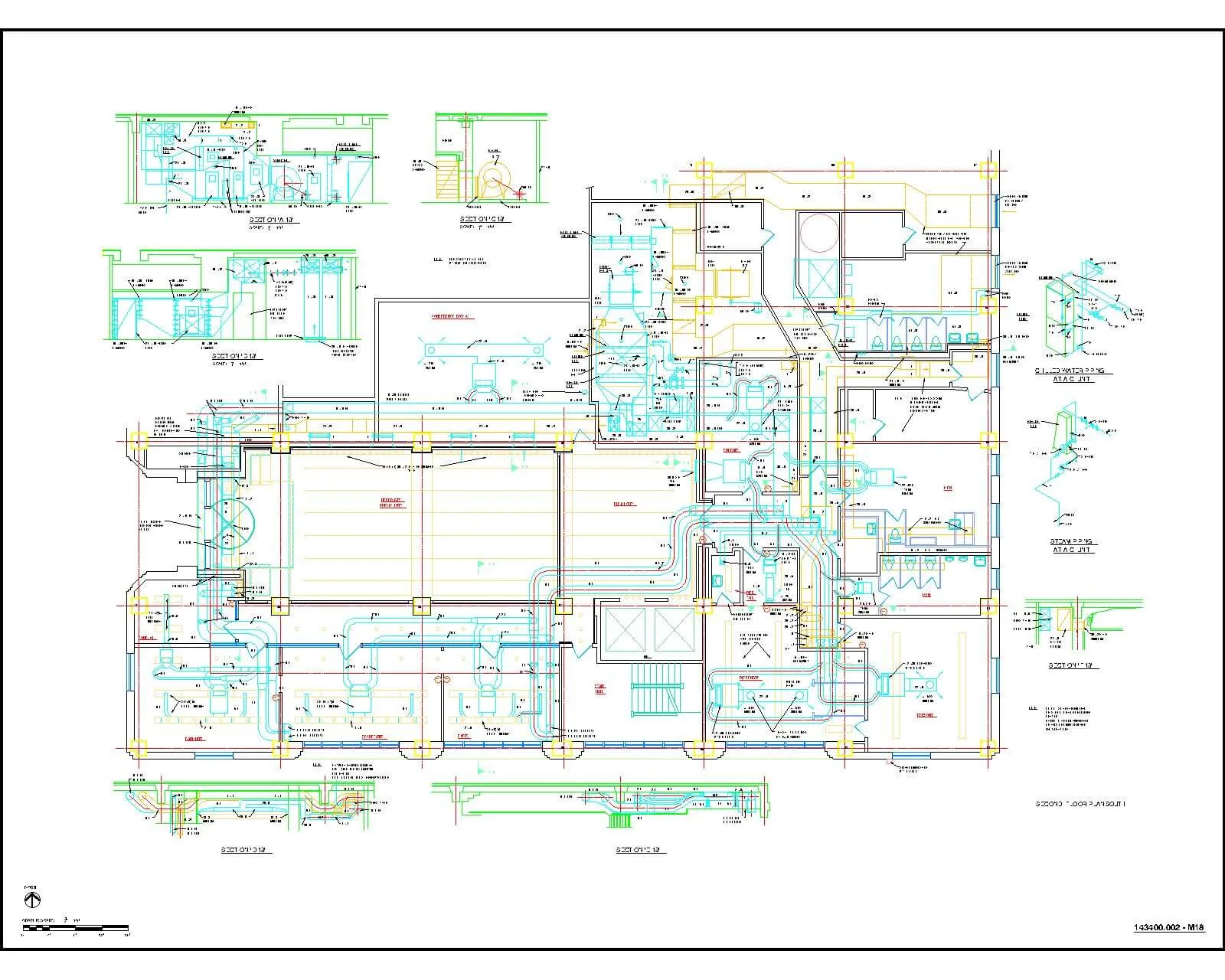

Mechanical plan and sections
Mechanical floor plan with sections and duct details, redrafted from a legacy paper sheet into editable CAD.
About paper to cad
What we had
What we did
MEP · Paper to CAD
Attic piping plan
Attic-level piping plan and sections, redrafted from a scanned sheet with the structural grid as the reference.
About paper to cadStart with one drawing
Send us a drawing. We'll return a free CAD sample within 48 hours.
